LinteL^® ATV-21

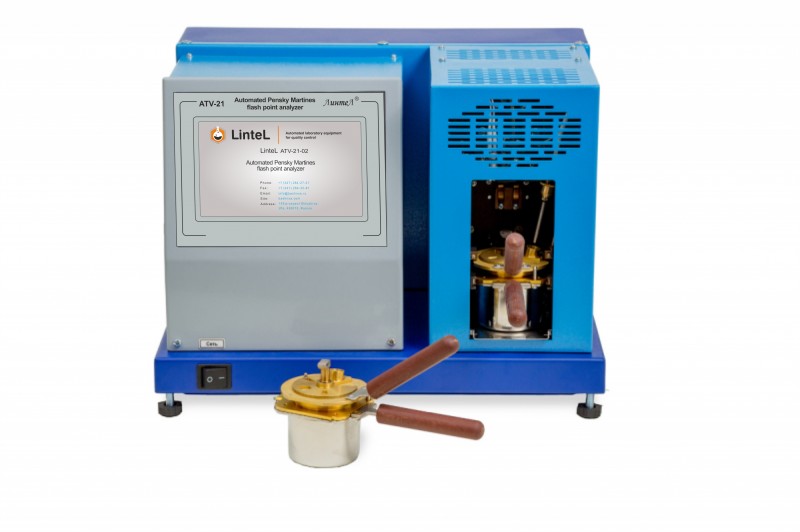

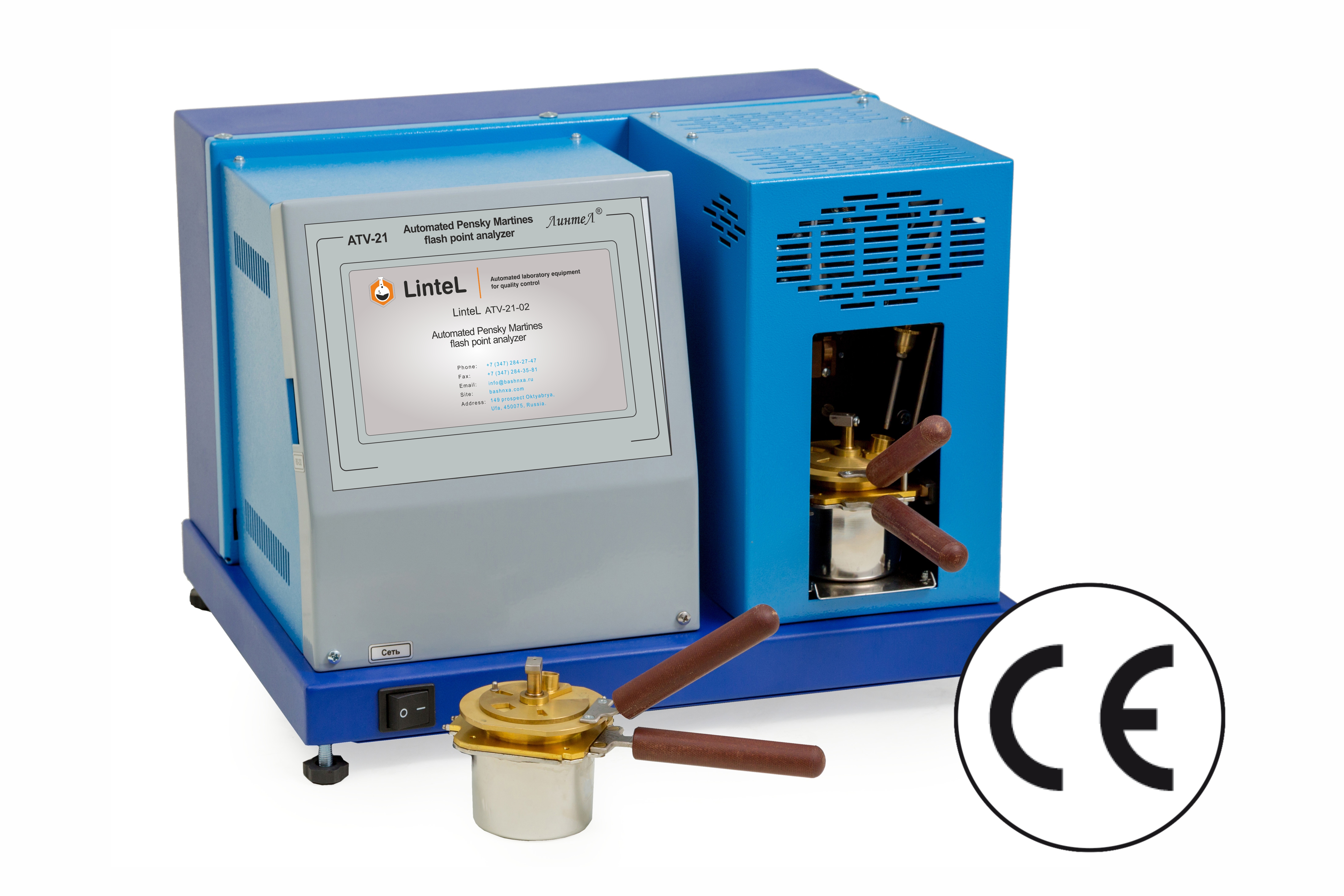

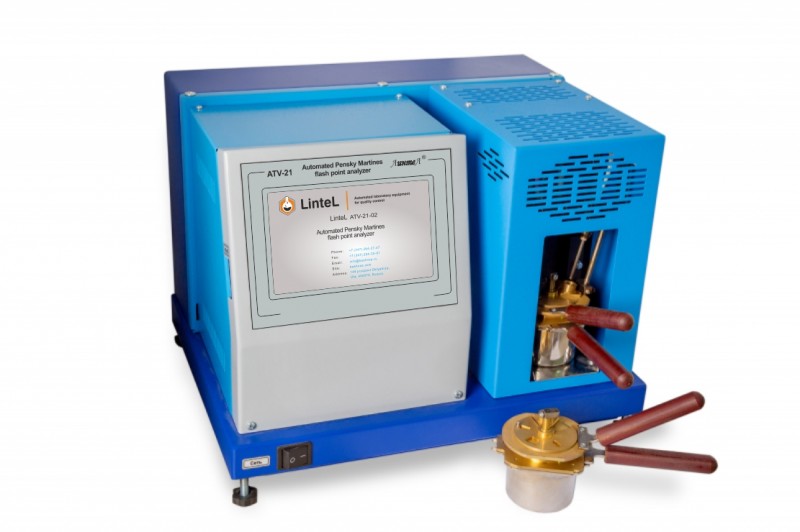

Automated Pensky Martens flash point analyzer (closed cup)

Standards

ISO 2719
ASTM D93

Price: Request a Quote €

Request Quotation

Запрос на приобретение

Нужно заполнить все обязательные поля

Ваша заявка отправлена

Товар*

Название организации*

ФИО*

Должность*

Вы находитесь на территории РФ?*

ДаНет

Адрес организации*

Телефон*

E-mail*

Комментарий к запросу

Отправить

Features

Specifications

Complete Set

LinteL АTV-21 analyzer provide complete automation of the testing process. Pre-installed test programs. Each test program contains test standard and parameters. When choosing a program, all the necessary parameters and test conditions are set and maintained automatically.
Unique design of built-in electric spark ignition – there is no open flame, there is no risk of fire in the laboratory. Accuracy of flash point determination with an electric spark ignition does not differ from testers with gas ignition.
Test logging provides storage of up to 1,000 test results and the last 100 diagrams.
Automatic mixing of the sample and programmed increase of the product temperature at a specified rate.
Possibility of product preheating switching on to reduce test time for products with a high flash point.
Calculation of average flash point.
Convenient intuitive menu for selecting the analysis program, navigation in the test log, diagnostics and setup of the tester.
Automatic correction for barometric pressure in the range from 630 to 810 mm Hg.
Complete self-diagnosis system with fault indication on the display.
Test stop at the end of analysis with audible alarm.
Color touchscreen LCD is used as a data input (keyboard) and output device simultaneously.
Analyzer can be used for quality control of vegetable oils.
Test by “Express” method for products with unknown flash point.
Integration with LinteL Link Data Collection System enables collection and transfer of laboratory test results from the tester to a personal computer via wireless communication. Integration with the laboratory information management system LinteL LIMS provides complex automation of laboratory activities.

SPECIFICATIONS
Flash point range	Automatic flash point determination in temperature range from +12 up to +370 °C
Heating	Automatic product heating and maintaining the product heating rate according to the selected test program
Ignition	Automatic ignition with an electric spark of controlled capacity for complete simulation of gas ball 4 mm in diameter
Stirrer	Stirring rate corresponds with selected test program requirements and is maintained automatically

ACCURACY PARAMETERS
Product under test	Flash point range, ºС	Repeatability r, ºС	Reproducibility R, ºС
ISO 2719 Method A ASTM D93 Method А
Paint and varnish	-	1,5	-
Distillate fuels and fresh lubricating oils	40 to 250	0.029X	0.071X
ISO 2719 Method B ASTM D93 Method B
Residual fuels and fluxed bitumen	40 to 110	2,0	6,0
Used lubrication oil	170 to 210	5,0	16,0
Liquids prone to surface film formation; liquids with suspended solid materials, high-viscosity products	-	5,0	10,0

PERFORMANCE DATA
Power supply	750 W, max: (in the mode of preparation for the test, 120 W max)
Dimensions (with cup installed)	420 х 310 х 455 mm (W x H x D)
Weight	15 kg max
Ambient air temperature	10 to 35 °С
Relative air humidity at a temperature of +25°С	80 % max
Voltage	198 to 242 V
Frequency	50 ± 1 Hz
Service life	6 year (15,000 hours max)
Warranty period	1 year (2,500 hours max)

SAFETY
Electrical safety	Differential automatic circuit breaker, preventing electric shock for the user and the tester damage due to short circuit
Fire safety	When readings on the digital temperature meter exceed plus 395 °С, or 28 spark tests have been completed, the test is stopped. Tester issues an intermittent audible alarm and displays the error message on the screen. When the test is stopped, the heating is turned off.
Audio signals	Beeping at the end of the test and failure detection
Diagnostic and setting	Built-in algorithms for self-diagnostics and settings, user notification about causes of malfunctions
